Ti-3Al-2.5V Titanium Tube Supplier

Grade 9 Seamless Tube always used at bicycle frames, Marine sensors, heat exchangers, and deep-sea fields.

3Al-2.5V Titanium Tube

As a leading manufacturer of Ti-3Al-2.5V seamless titanium tubes, FD Titanium adheres to strict quality standards to produce titanium tubes that meet the requirements of our customers.

After 15 years effort, our titanium alloy tubes have been widely used in bicycle frames, Marine sensors, heat exchangers, and deep-sea fields. It has a domestic market share of over 70% and has replaced Sandvik’s titanium tube in heat exchangers.

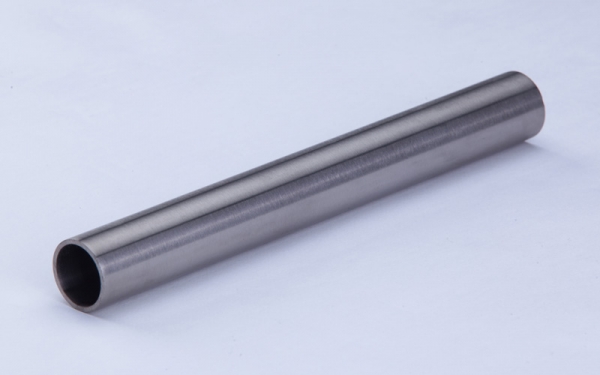

3Al-2.5V Titanium tube
Bicycle Frame

Description of 3Al2.5V Titanium Tube

Ti-3Al-2.5V (GR 9) is an alloy consisting of 3% aluminum, 2.5% vanadium, and 94.5% pure titanium. This grade has excellent corrosion resistance to seawater and higher mechanical properties than stainless steels, For the same size, the weight only 56% of stainless steel.

3Al2.5V titanium tube are widely used in:

  • Titanium Bicycle
  • Titanium Wheelchair
  • Titanium Golf
  • The Shell of Sensor in Ocean
  • Aerospace Applications

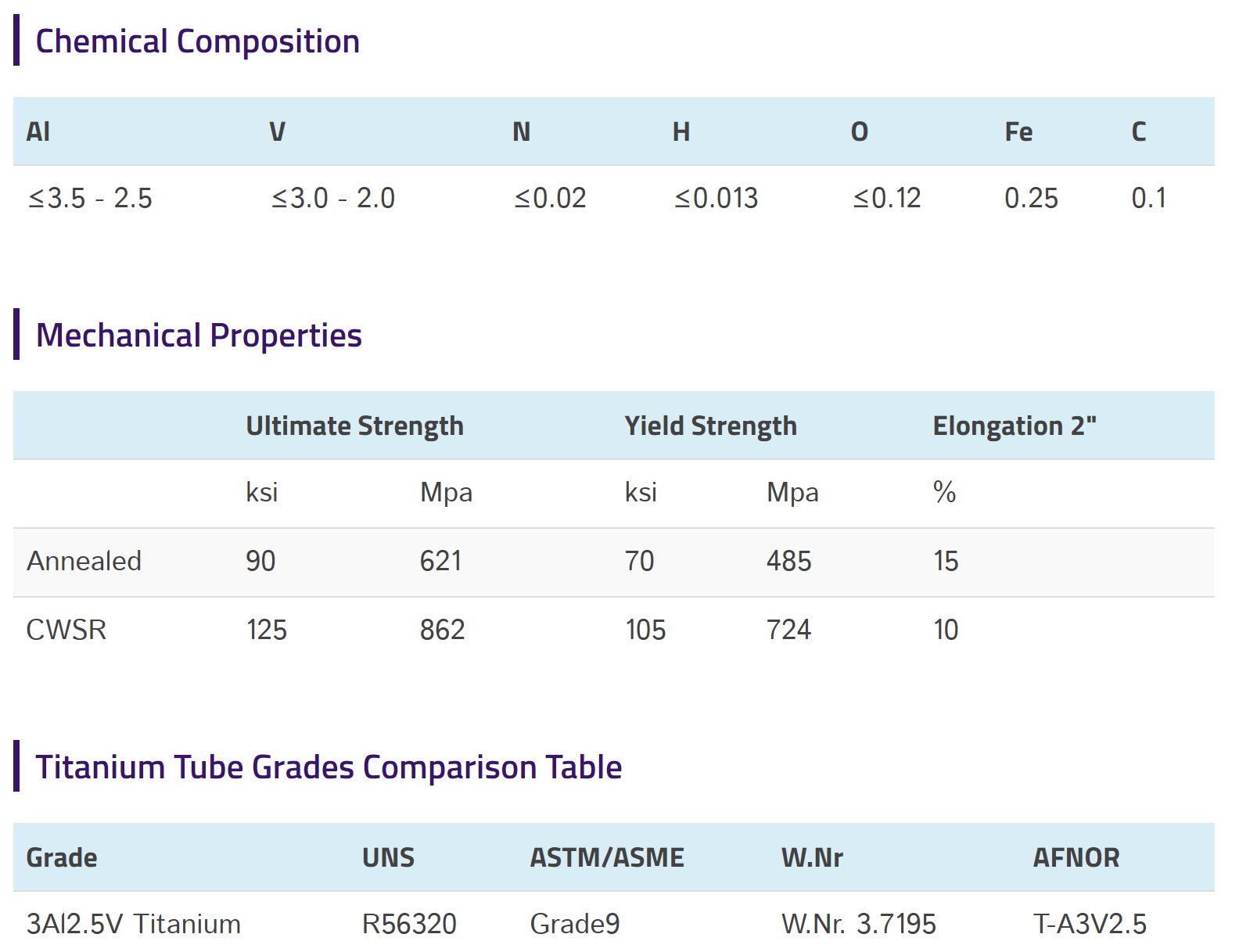

Specifications of 3Al2.5V Titanium Tube

Standard: ASTM B338, ASTM B861, AMS4943F, AMS4945F
Grade: 3Al2.5V, Gr.9, UNS R56320
Outer diameter Range: 6mm ~ 250mm
Thickness Range: 0.5mm ~ 20mm
Length: Not exceed 15 Meters
Condition: Full Annealed or Stress relieving (CWSR)
Extra Service: Cutting, Machining, Polishing, Bending


Light Weight and High Strength

Ti-3Al-2.5V alloy (UNS R56320) is both lightweight and strong. It has a high strength-to-weight ratio which provides a major design advantage – saving weight. Ti-3Al-2.5V alloy is about 43 percent lighter than stainless steel.
commercially pure titanium was alloyed with selected elements to improve the performance characteristics and to obtain higher strength levels. Specific alloying additives, notably aluminum, raise the temperature at which the alloy transforms completely to the beta phase. This point on, the temperature scale is known as the beta transfuse temperature. The addition of vanadium, on the other hand, lowers the temperature of transformation of alpha to beta phases.

Quality Control & Packing

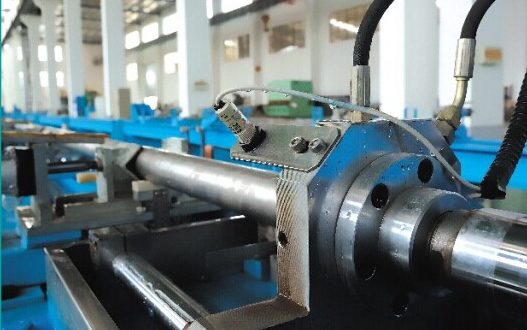

titanium tube hydro test

Hydrostatic Test

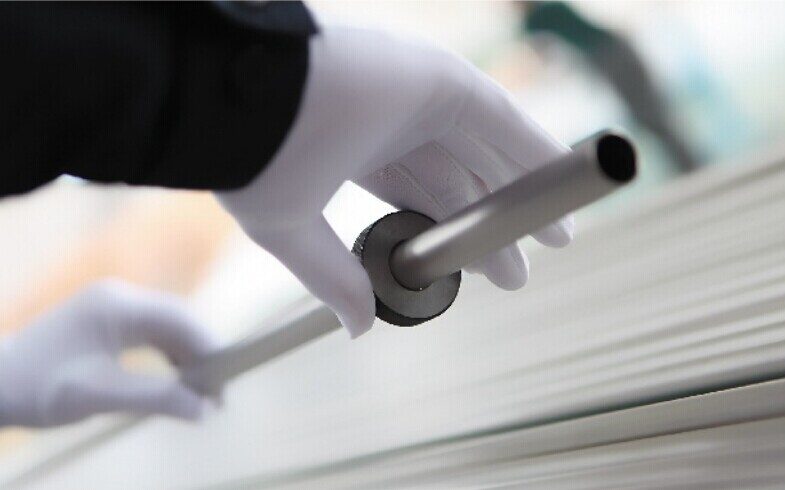

titanium tube size inspection

Size Control

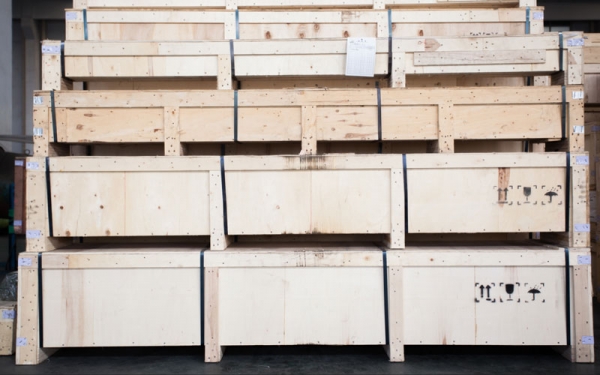

titanium tube package

Strong Case
