Titanium bars are a very strong metal material with good ductility, corrosion resistance and wear resistance. It has excellent impact resistance and high strength, able to withstand great pressure. In addition, the density of titanium bars is low, which can reduce weight and save energy.
Titanium Bar Performance
● Low Density and High Strength
● Excellent Corrosion Resistance
● Good resistance to effect of heat
● Excellent Bearing to cryogenic property
● Nonmagnetic and Non-toxic
● Good thermal properties
Titanium bars are used extensively in medical, aerospace and chemical industries. FD Titanium offers the Titanium bar with good quality and good price. If you have any question or request. Please let us know by sending email to [email protected]
Titanium bars are available in a variety of grades. The most common grades are GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR23.
● Grade 1 can be used in the drawing parts for its good elongation and excellent corrosion-resistance.
● Grade 2 is used most widely in the commercially pure titanium
● Grade 3 is almost used in pressure vessel.
● Grade 4 can be used in some fittings parts and fastening pieces, but for complex shape need 300 degrees Celsius to form.
● Alloy grade 5 (Ti-6Al-4V) widely used in the titanium alloys because of its comprehensive mechanical and chemical properties.
● Alloy grade 7 adds little palladium in cp titanium and it has the most excellent corrosion-resistance, of course it costs higher.
● Alloy grade 9 (Ti-3Al-2.5V) is the most widely used in the golf clubs and bicycle girders.
● Alloy grade 23, ELI (extra low interstitial), can be used in the medical appliance.
Grade | Al | V | Mo | Ni | Pd | Fe | O | H | N | C | Residual each | Residual total | Ti | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grade 1 | \ | \ | \ | \ | \ | 0.2 | 0.18 | 0.015 | 0.03 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 2 | \ | \ | \ | \ | \ | 0.3 | 0.25 | 0.015 | 0.03 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 3 | \ | \ | \ | \ | \ | 0.3 | 035 | 0.015 | 0.05 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 4 | \ | \ | \ | \ | \ | 0.5 | 0.4 | 0.015 | 0.05 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 5 | 5.5-6.75 | 3.5-4.5 | \ | \ | \ | 0.4 | 0.20 | 0.015 | 0.05 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 7 | \ | \ | \ | \ | 0.12-0.25 | 0.30 | 0.25 | 0.015 | 0.03 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 9 | 2.5-3.5 | 2.0-3.0 | \ | \ | \ | 0.25 | 0.15 | 0.015 | 0.03 | 0.08 | 0.1 | 0.4 | BAL | ||
Grade 23 | 5.5-6.5 | 3.5-4.5 | \ | \ | \ | 0.25 | 0.13 | 0.0125 | 0.03 | 0.08 | 0.1 | 0.4 | BAL |
Titanium grade | UNS | Yield strength Rp0.2 MPa min | Tensile strength Rm MPa min | Elongation A % min |
---|---|---|---|---|
Cp Ti Grade 1 | R50250 | 138-310 | 240 | 24 |
Cp Ti Grade 2 | R50400 | 275-450 | 345 | 20 |
Cp Ti Grade 3 | R50550 | 380-550 | 450 | 18 |
Cp Ti Grade 4 | R50700 | 430 | 550 | 15 |
Ti Grade 5 | R56400 | 828 | 895 | 10 |
Ti Grade 7 | R52400 | 275-450 | 345 | 20 |
Ti Grade 9 (Annealled) | R56320 | 485 | 621 | 15 |
Ti Grade 9 (CWSR) | R56320 | 725 | 860 | 10 |
Ti Grade 23 | R56407 | 828 | 759 | 10 |
ASTM B348
Titanium and Titanium Alloy Bars and Billets
AMS 4928
Titanium Alloy Bars, Wire, Forgings, Rings, and Drawn Shapes (6Al-4V), Annealed
ASTM F67
Unalloyed Titanium for Surgical Implant Applications (UNS R50250, UNS R50400, UNS R50550, UNS R50700)
ASTM F136
Wrought Titanium-6 Aluminum-4 Vanadium ELI (Extra Low Interstitial) Alloy (UNSR56401) for Surgical Implant Applications
ASTM B381
Titanium and Titanium Alloy Forgings
MIL-T-9047G
Titanium and Titanium alloy bars (Rolled or forged) and reforging stock, aircraft quality.
ASTM F1295
Wrought Titanium-6 Aluminum-7 Niobium Alloy for Surgical Implant Applications (UNS R56700)
Titanium bars have become increasingly popular in recent years due to their superior strength, corrosion resistance, and wear resistance. They can be used in a wide range of applications such as aerospace, automotive, medical, and industrial. In aerospace, titanium bars can be used to make airframes, engines, and landing gear. In automotive, they are used in the manufacturing of engine components and transmission parts. They are also used in medical implants and prostheses as well as in industrial applications such as pipes and valves. Titanium bars are also used in the production of sporting goods and jewelry. Their superior strength, corrosion resistance, and wear resistance make them a great choice for many applications.

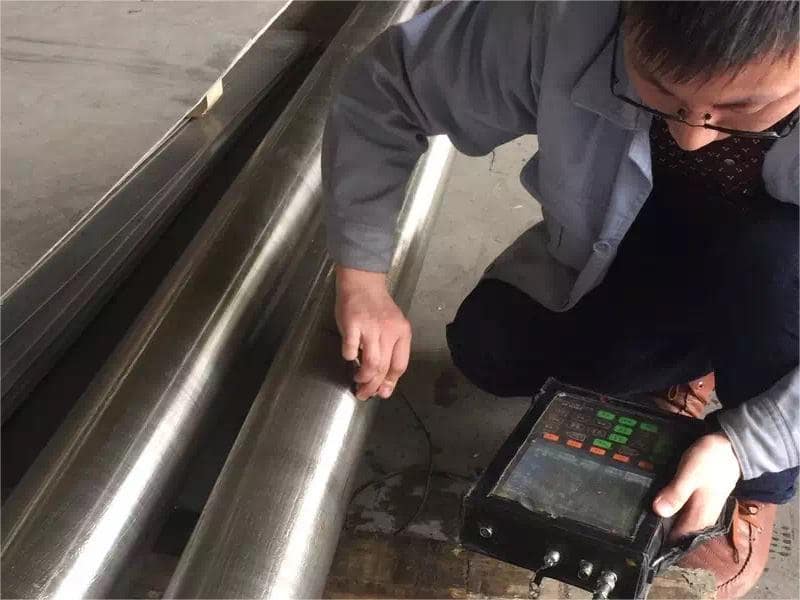

Ultrasonic test (UT)
Ultrasonic testing (UT) comprises a range of non-destructive testing (NDT). techniques that send ultrasonic waves through an object or material. These high frequency sound waves are transmitted into materials to characterize the material or for flaw detecting.
Penetrant test (PT)
Penetrant Testing, referred to as PT in the industry, is a non-destructive testing method that has been used for industrial Nondestructive Testing (NDT) for a long time.
The main application of penetrant inspection is to check for surface open defects, such as surface cracks, in metal (steel, aluminum, magnesium, copper, heat resistant alloys, etc.) and non-metal (plastic, ceramics, etc.) workpieces.
Radiographic test (RT)
Radiographic Testing, or RT for short, is an important specialty of industrial Nondestructive Testing.
The main application of radiographic inspection is the detection of macro geometric defects inside the workpiece. According to different characteristics, radiographic inspection can be divided into several different methods, such as: X-ray tomography (X-CT), computerized radiography (CR), radiographic methods, etc.
Radiographic method, the use of X-ray tube generated X-rays or radioactive isotopes produced by the γ-ray penetration of the workpiece, the film as a device to record information of non-destructive testing methods. The method is the most basic and widely used a radiographic inspection method, but also the main content of professional training in radiographic inspection.
There are some ways to processing the bars, Forging, Extruding, Rolling, Cold drawing. So we also call it Titanium Extruded bar, Titanium forging bar, Titanium rolling bar. what is the best way to process our bar? Each processing way has it best range size.
Hot forging: 7mm – 230mm
Hot extruding:15mm – 80mm
Hot rolling: 8mm -120mm
Cold rolling or Cold drawing: 8mm – 20mm
Bars are not only Round Bar, As per shape:
Titanium Round Bar
Titanium Rectangular Bar
Titanium Square Bar
Titanium Flat Bar
Titanium Hexagonal Bar

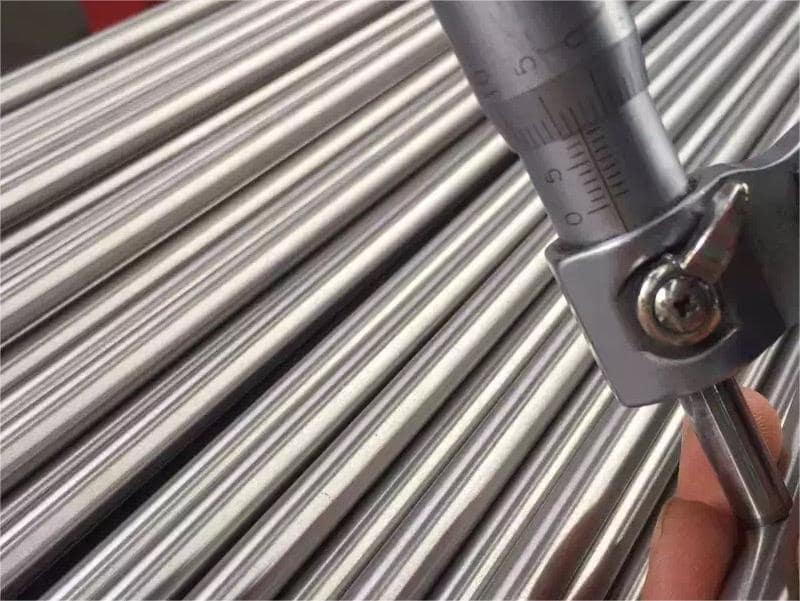

The table below outlines the range of diameters that can be achieved for varying lengths of titanium bar, based on international engineering standards. Different production methods are used to achieve the desired diameters, and the dimensions and tolerances of the titanium bar must be agreed upon prior to the order being placed. or Send message to us.
Size – in. (mm) | Tolerance – in. (mm) | Ovality – in. (mm) |
---|---|---|
1⁄4 to 5⁄16 (6.35 to 7.94), incl | +/-0.005 (0.13) | 0.008 (0.20) |
Over 5⁄16 to 7⁄16 (7.94 to 11.11), incl | +/-0.006 (0.15) | 0.009 (0.23) |
Over 7⁄16 to 5⁄8 (11.11 to 15.88), incl | +/-0.007 (0.18) | 0.010 (0.25) |
Over 5⁄8 to 7⁄8 (15.88 to 22.22), incl | +/-0.008 (0.20) | 0.012 (0.30) |
Over 7⁄8 to 1 (22.22 to 25.40), incl | +/-0.009 (0.23) | 0.013 (0.33) |
Over 1 to 11⁄8 (25.40 to 28.58), incl | +/-0.010 (0.25) | 0.015 (0.38) |
Over 11⁄8 to 11⁄4 (28.58 to 31.75), incl | +/-0.011 (0.28) | 0.016 (0.41) |
Over 11⁄4 to 13⁄8 (31.75 to 34.92), incl | +/-0.012 (0.30) | 0.018 (0.46) |
Over 13⁄8 to 11⁄2 (34.92 to 38.10), incl | +/-0.014 (0.36) | 0.021 (0.53) |
Over 11⁄2 to 2 (38.10 to 50.80), incl | +/- 1⁄64 (0.40) | 0.023 (0.58) |
Over 2 to 21⁄2 (50.80 to 63.50), incl | + 1⁄32, − 0 (0.79) | 0.023 (0.58) |
Over 21⁄2 to 31⁄2 (63.50 to 88.90), incl | + 3⁄64, − 0 (1.19) | 0.035 (0.89) |
Over 31⁄2 to 41⁄2 (88.90 to 114.30), incl | + 1⁄16, − 0 (1.59) | 0.046 (1.17) |
there is a formula to calculate the weight of titanium bar. It’s very easy way.
Weight(kgs)=Dia² * 3.542 * Length(mm)/1000000
For example: Bar Dia 88.9mm, Length 2000mm. Weight = 88.9 * 88.9 * 3.524 * 2000/1000000 = 55.70Kg
Or Go to Our Metal Calculator. We will help you get the weight directly.
We may see the titanium bars are bright or rough. after annealed, titanium bars are rough and black, the bright surface is coming from machining and grinding. pic as below.
Different titanium grade, Different size, Different Tolerance and Special requirements all affect the price. Sometime the raw billet’s price or Exchanger rate changes. the price of titanium changes the same. But at least. it never lower than USD20/Kg.
If you want the exact price for your size, we can do for you, please don’t hesitate to reach out!
Titanium bars are used extensively in medical, aerospace and chemical industries, providing requisite strength to weight properties need to ensure extreme conditions and heavy usage without corrosion or failure. FD Titanium also provide titanium bars for use in advanced electronic products for the consumer market. and also, with Titanium Tubes.
●According to globally recognized standards, such as ASTM, AMS, ASME and provide third-party inspection reports, DNV accredited ISO 9001: 2008 quality management system.
●100% titanium sponge to produce titanium ingot and 3 times melting to ensure the uniformity of chemical composition. For chemical composition inspection, not only inspect the titanium ingot, but also the semi-finished products and finished products, just to ensure 100% qualified products before shipping.
●Mechanical property testing making sure all titanium products can satisfy mechanical features before delivery.
●Strict inspection when producing and finished products.Visual inspection to check surface quality, ensuring without flaw, black dot and any other defects.
●Ultrasonic Flaw Detection make sure thers are no defect inside.
●Chemical Composition detection make sure all chemical component can meet your demands.
●Yield strength, tensile strength, elongation percentage reduction of area, Impact bending test, microstructure tests, bending strength test etc.
● Hardness testing, Penetrant testing, Radiographic testing etc. as per your requirements.
Name | Titanium Bar / Titanium Rod |
---|---|
Shape | Round, Square, Hexagonal |
Grade | GR1. GR2. GR3. GR4. GR5. GR7. GR11. GR12. GR23 etc. |
Standard | ASTM B348, AMS 4928, ASTM F67, ASTMF136, ASTM B381, MIL-T-9047G,ASTM F1295 |
Size | DIA:6mm-350mm, Length≤6000mm |
Production | Forging / extruding / rolling / cold drawing |
Test | Ultrasonic test (UT) |
Packing | Wooden Case |
